Interlace, Chart

10 designs + 1 collection

Interlace Ceiling Clouds are a suspended, acoustic installation featuring refined, entwined patterns designed to complement open interiors. The visually dynamic forms bring architectural depth while offering functional benefits. Chart is an understated, uniform design that provides aesthetic versatility suiting a wide range of environments. It is engineered for enhanced sound absorption, making it an ideal solution for improving acoustics and ambiance across large spaces.

A modern interior with large blue geometric acoustic felt ceiling cloud, skylights above, and a black digital departures board below, likely in an airport terminal. Sleek white walls and glass accents create a bright, spacious atmosphere.

Interlace, Chart Ceiling Clouds | Periwinkle, Marine | Premier Collection

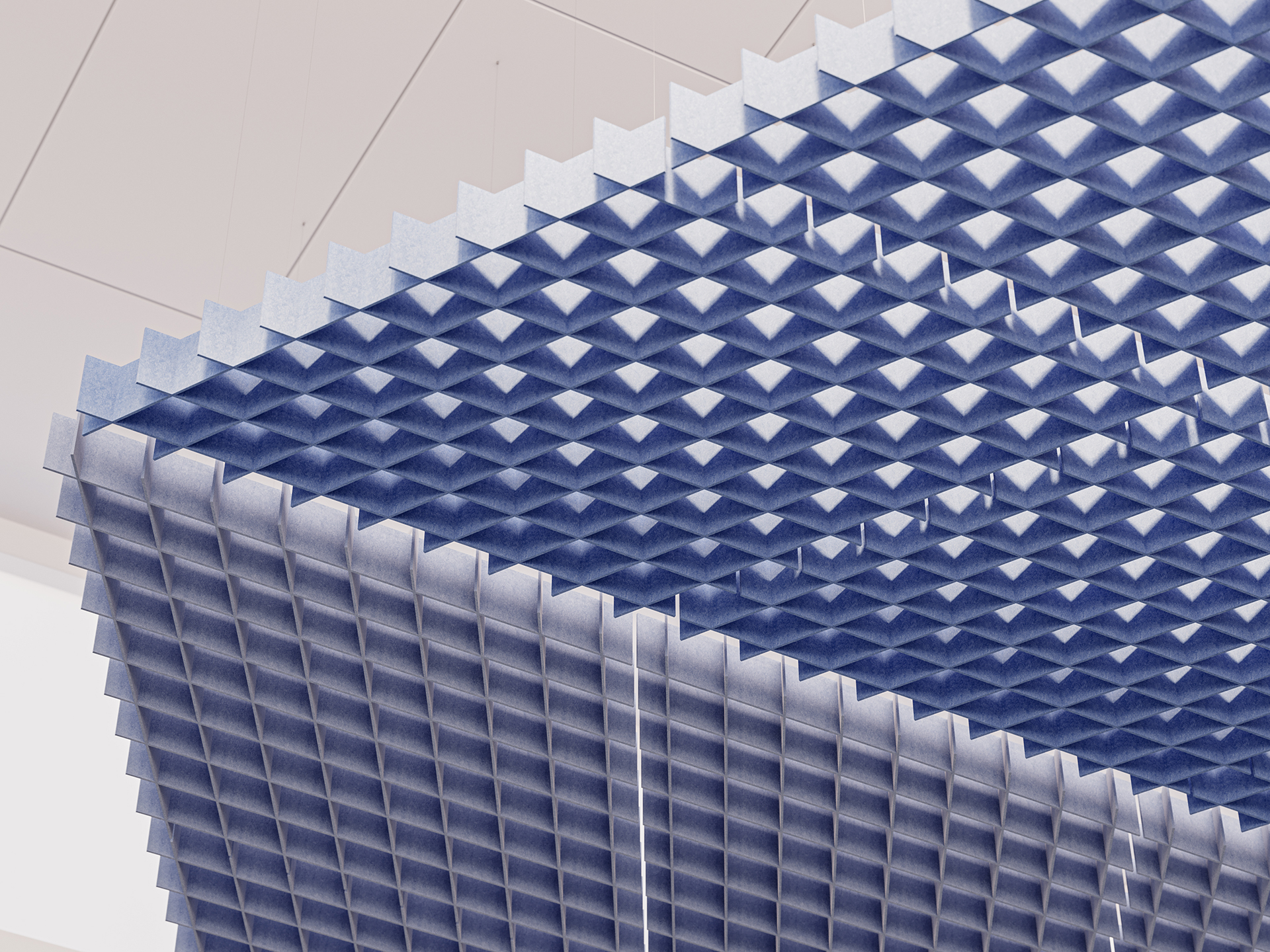

A close-up view of a suspended, blue, grid-patterned acoustic ceiling cloud with a geometric, three-dimensional texture, hanging from a white ceiling.

Interlace, Chart Ceiling Clouds | Periwinkle, Marine | Premier Collection

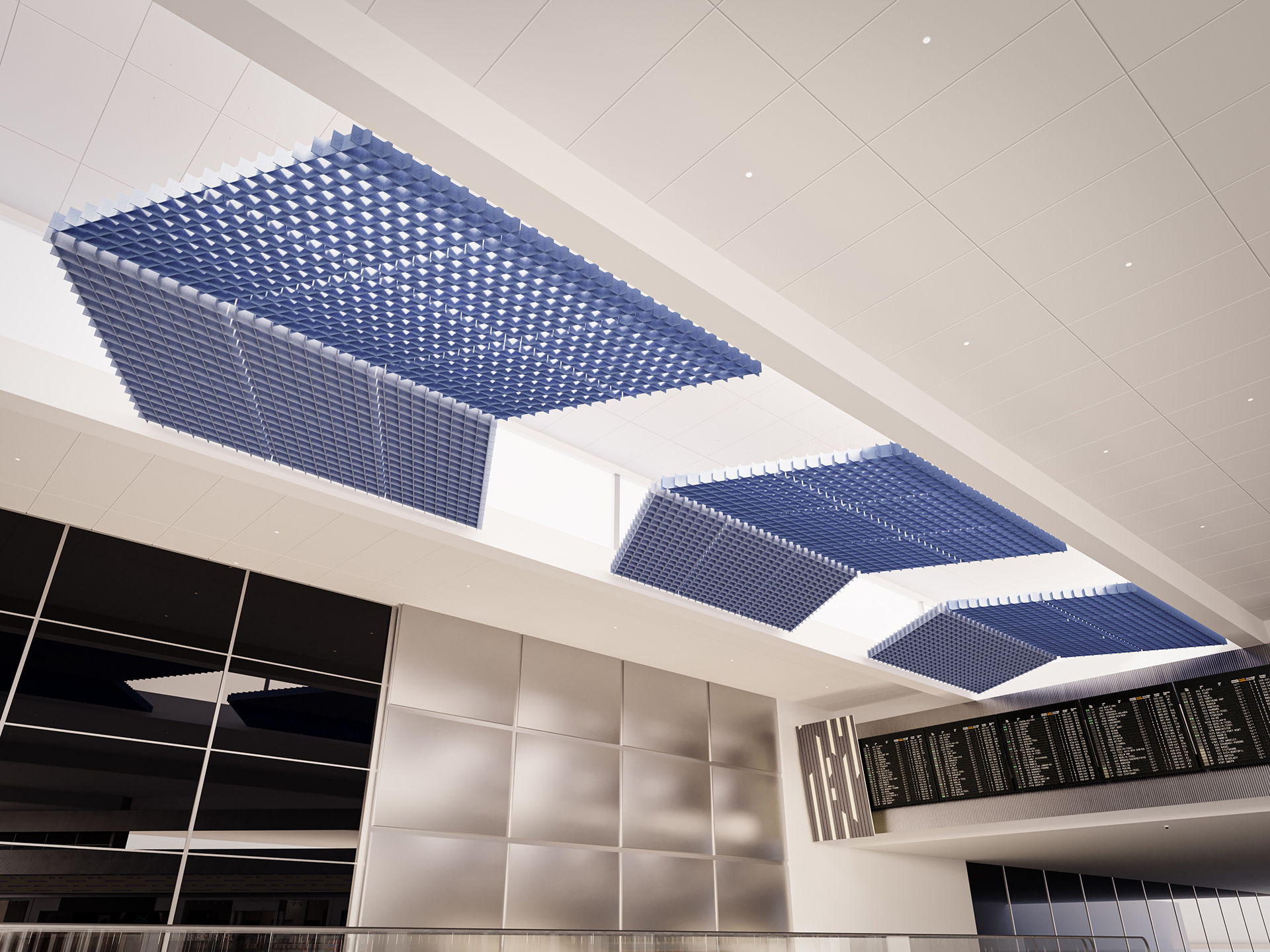

Large blue acoustic felt clouds are suspended from a modern white ceiling above a spacious interior with reflective wall panels, large windows, and a digital information display board.

Interlace, Chart Ceiling Clouds | Periwinkle, Marine | Premier Collection

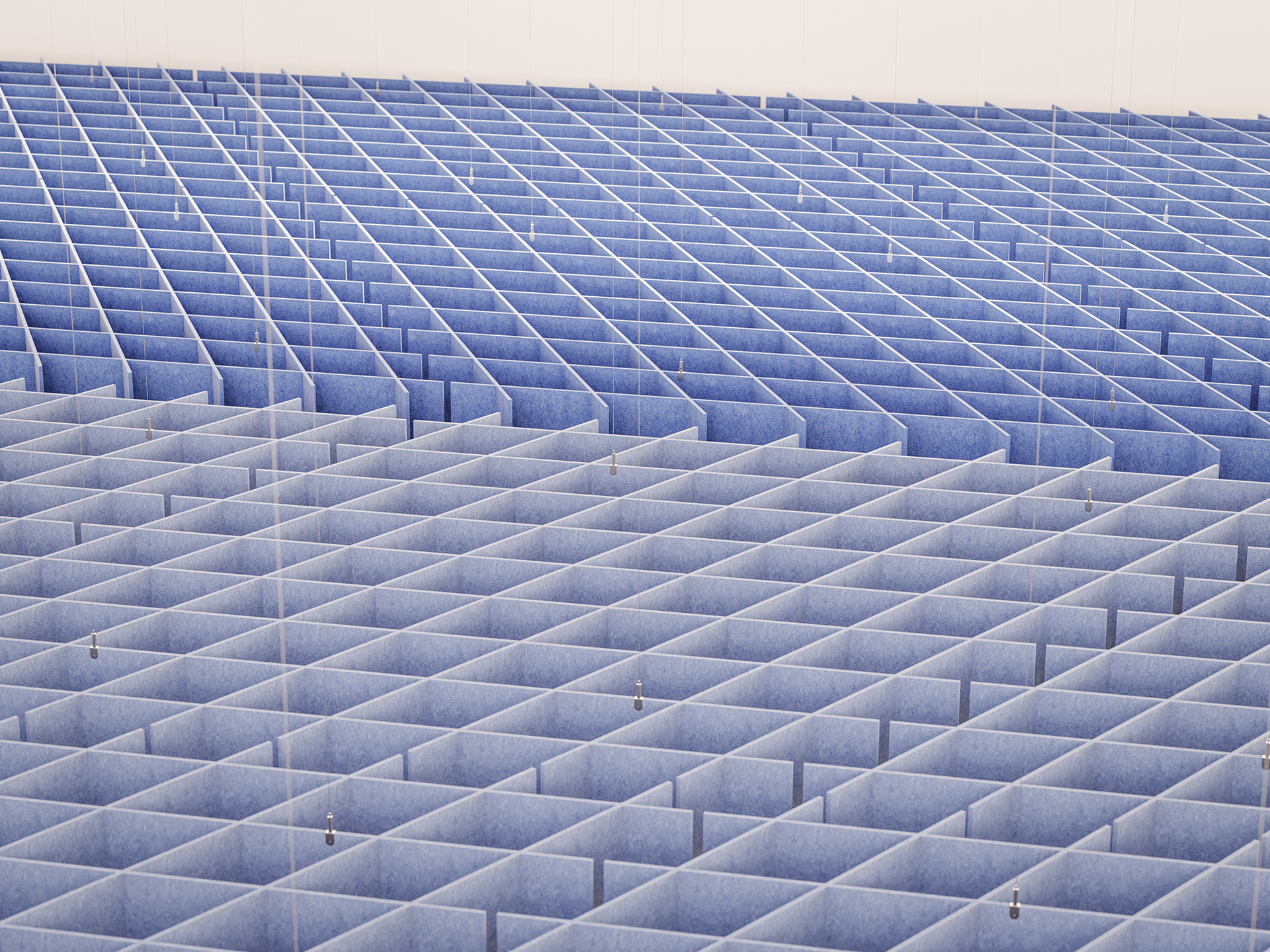

A large grid of blue, rectangular acoustic felt clouds creates a geometric, maze-like pattern; the clouds are evenly spaced, and thin wires hang from the ceiling above.

Interlace, Chart Ceiling Clouds | Periwinkle, Marine | Premier Collection

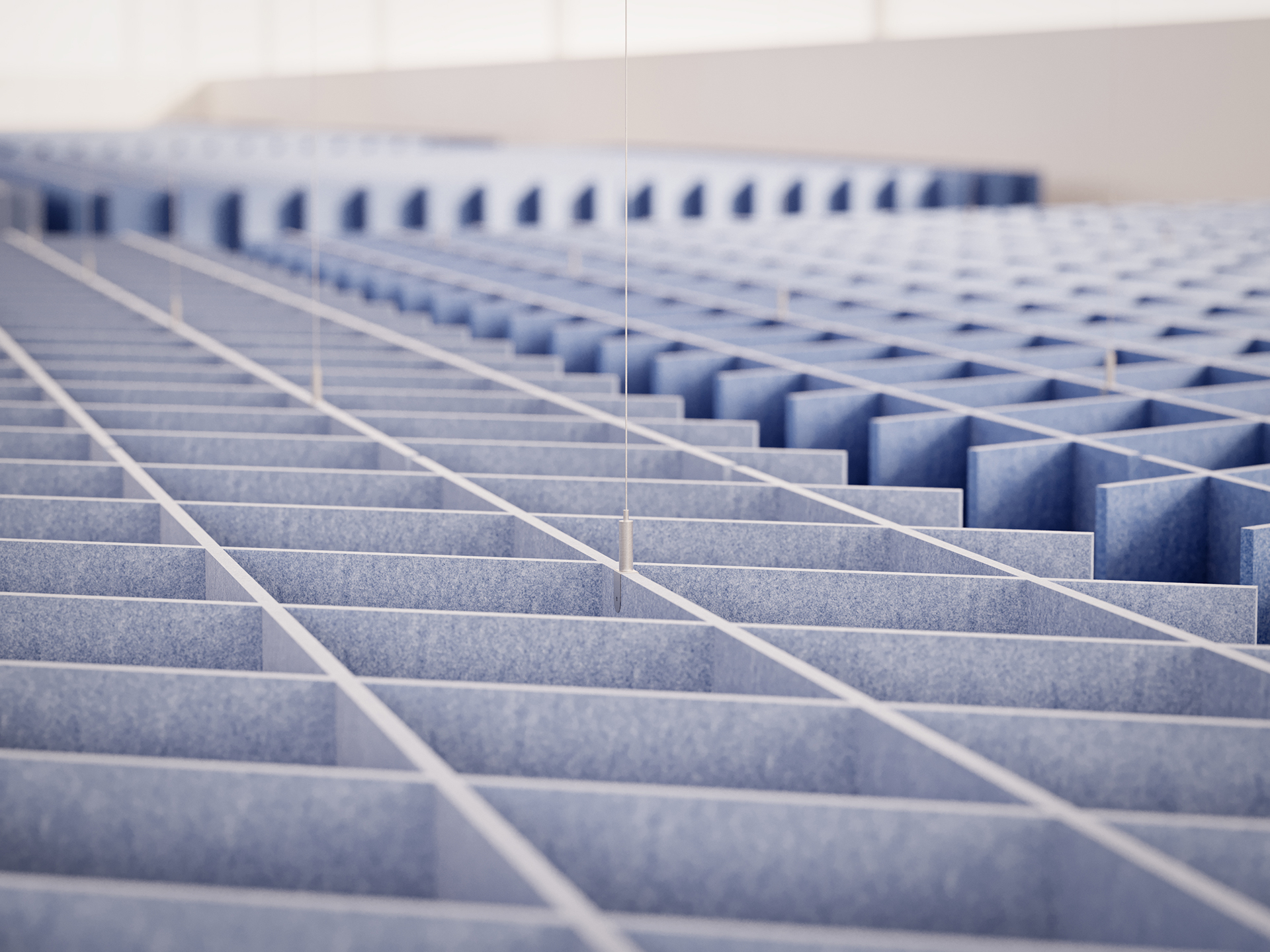

A close-up view of an acoustic felt ceiling cloud with a grid-like structure made of blue panels, arranged in rows and columns, creating a repeating geometric pattern with a modern, abstract appearance.

Interlace, Chart Ceiling Clouds | Periwinkle, Marine | Premier Collection

InterlaceChart

Product Samples

Build a product sample.

Build your product, download a PDF, and order a custom sample.

1. Select design

2. Select thickness

3. Select size

4. Select face color

White
WH12

Interlace

Chart

Date	5/6/2026
Product	Interlace
Design	Chart
Face Color	White WH12
Thickness	12mm
Sample Size	12"W x 12"L x 12"H

DISCLAIMER

Drawing is a reference for color application only. We recommend ordering actual color samples to make final design decisions.

Note: Sample is a section of the full product.

Product samples are limited to a maximum of 5. Ships in 1-2 days.

Need color samples, too? Order them .

Resources

Specification Sheet

Colorways

Care Guide

Warranty

Material Safety

LEED Contributions

Specifications

Specs

Surface

Ceiling

Material

Felt (100% polyester)

Recycled Content

60% minimum

NRC Rating

0.85, 200mm air gap
0.80, 400mm air gap

Weight

0.49 lb./ft²

Dimensions

Heights: 6″ up to 12″ H (2″ increments)
Widths: 48, 60, 72, 96, 108″ W
Lengths: 48, 60, 72, 96, 108″ L

Fire Tests

ASTM E84-17a Class A
CAN/ULC-S102

Lead Time

3-6 weeks

Origin

Manufactured and assembled in the USA

Sustainability

We help designers, architects, and owners meet their clean building goals by testing all of our products against internationally recognized environmental and human safety standards to protect our employees, our customers, and future generations. Read more about our sustainability work here.
