Ceiling / Clouds / Interlace / Foundation

Interlace, Foundation

10 designs + 1 collection

Foundation is a well-balanced design in the Interlace Ceiling Clouds family that adds architectural depth to any space, while offering the functional benefit of effective sound absorption. This suspended, acoustic solution improves the absorption of unwanted sound and enhances the ambiance of large spaces.

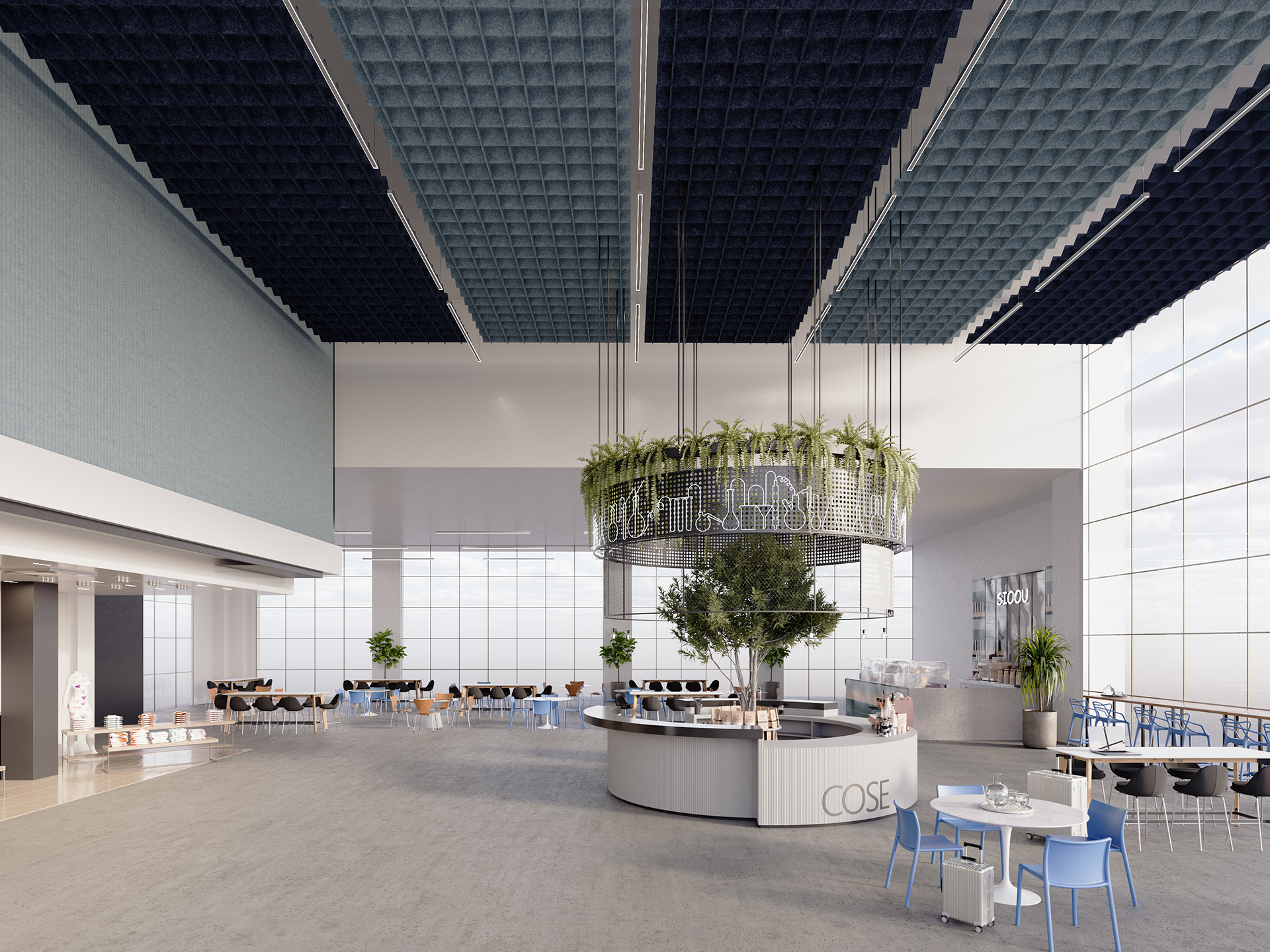

A modern, spacious café with large windows, minimalist furniture, and blue acoustic felt interlaced grids on the ceiling. A circular counter with greenery and trees is in the center, surrounded by tables and chairs.

Interlace, Foundation Ceiling Clouds | Stonewash, Granite | Premier Collection

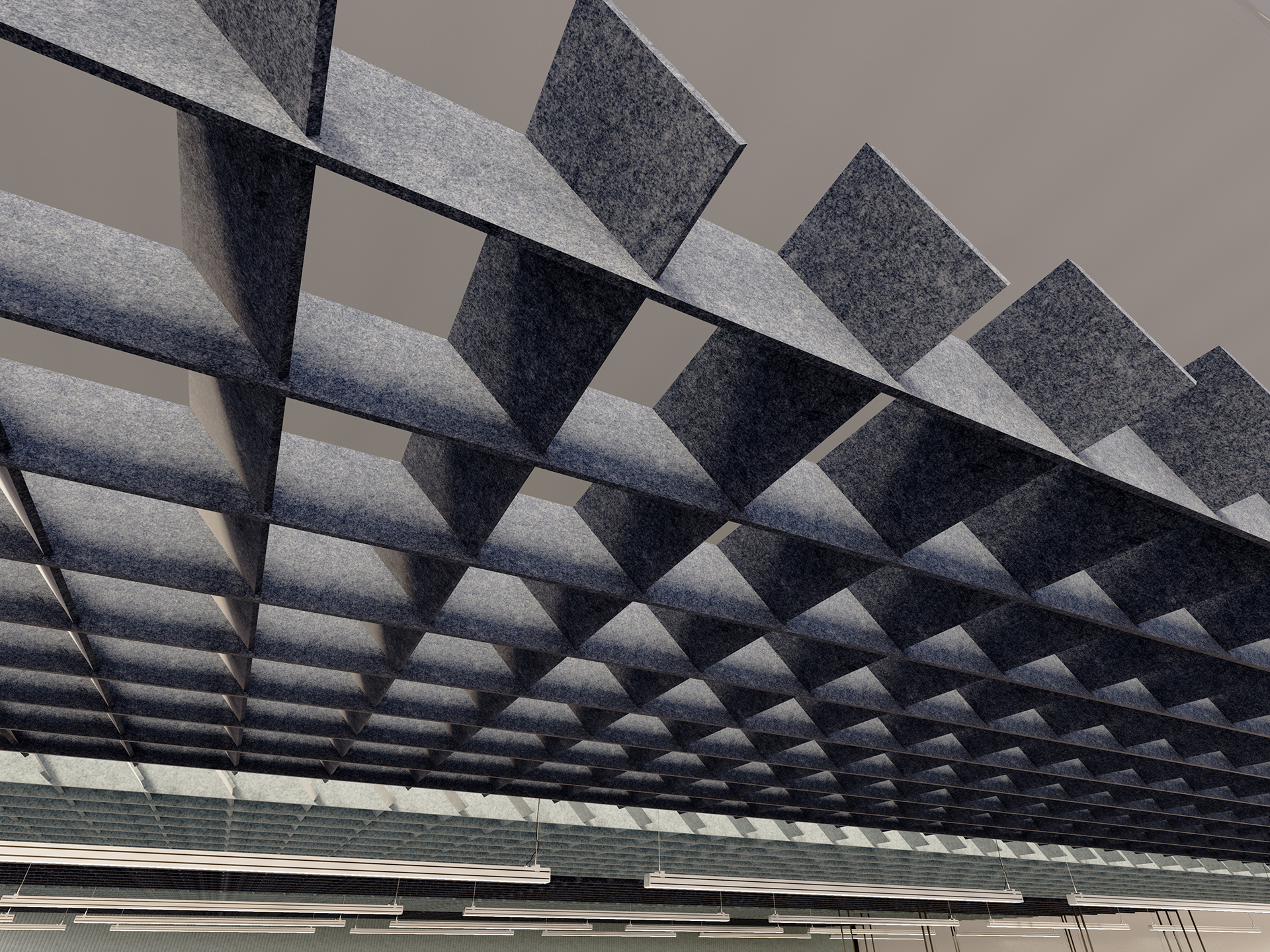

A close-up view of a modern ceiling with a geometric grid pattern made of square, blue-gray acoustic felt panels, creating a repeating checkerboard effect above fluorescent light fixtures.

Interlace, Foundation Ceiling Clouds | Stonewash, Granite | Premier Collection

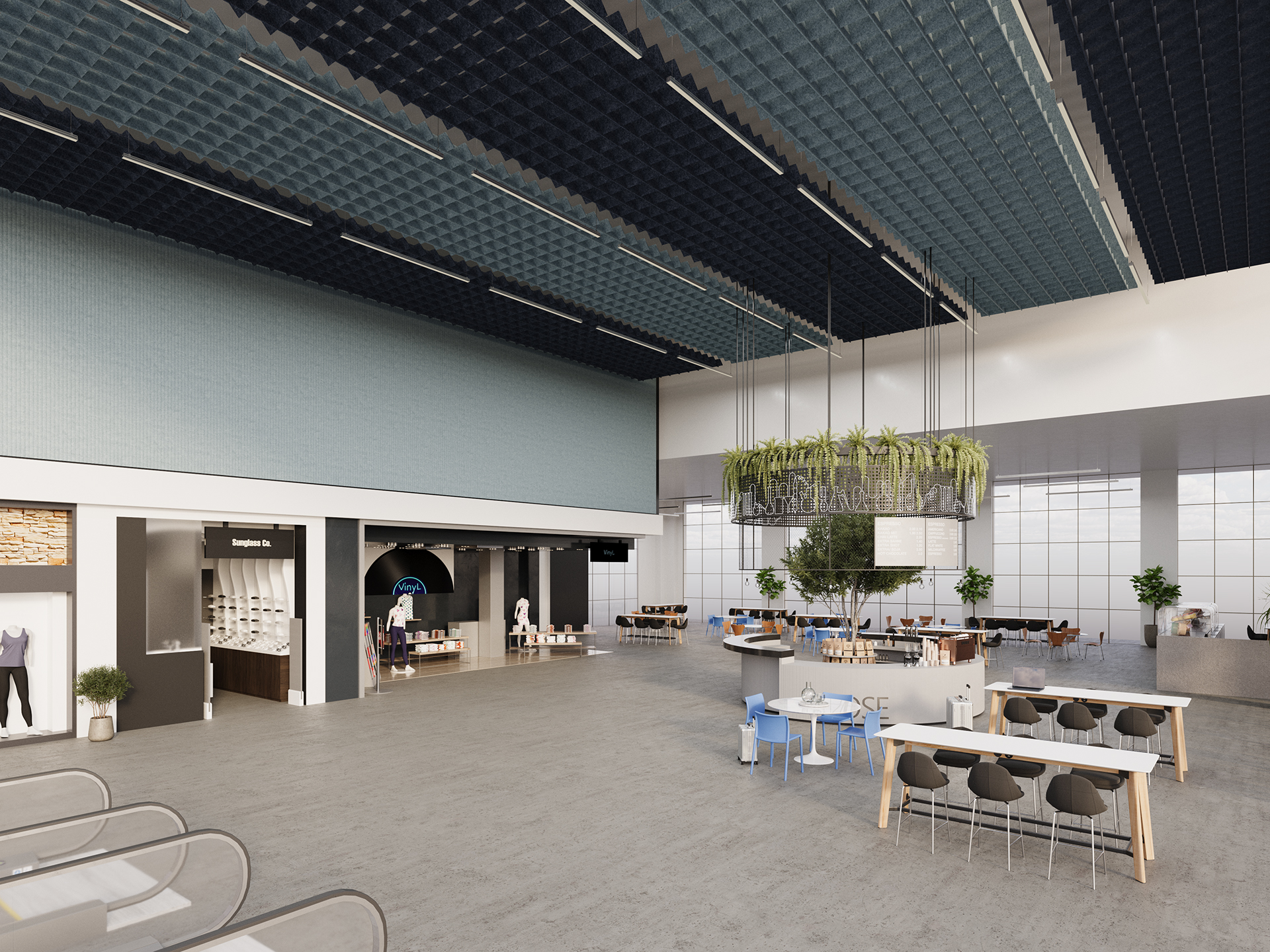

A spacious, modern atrium with a café, seating areas, greenery in hanging planters, large windows, a blue-accented acoustic felt ceiling, and retail shops along one wall. Escalators are visible on the left side.

Interlace, Foundation Ceiling Clouds | Stonewash, Granite | Premier Collection

InterlaceFoundation

Product Samples

Build a product sample.

Build your product, download a PDF, and order a custom sample.

1. Select design

2. Select thickness

3. Select size

4. Select face color

White
WH12

Interlace

Foundation

Date	5/6/2026
Product	Interlace
Design	Foundation
Face Color	White WH12
Thickness	12mm
Sample Size	12"W x 12"L x 12"H

DISCLAIMER

Drawing is a reference for color application only. We recommend ordering actual color samples to make final design decisions.

Note: Sample is a section of the full product.

Product samples are limited to a maximum of 5. Ships in 1-2 days.

Need color samples, too? Order them .

Resources

Specification Sheet

Colorways

Care Guide

Warranty

Material Safety

LEED Contributions

Specifications

Specs

Surface

Ceiling

Material

Felt (100% polyester)

Recycled Content

60% minimum

NRC Rating

0.85, 200mm air gap
0.80, 400mm air gap

Weight

0.49 lb./ft²

Dimensions

Heights: 6″ up to 12″ H (2″ increments)
Widths: 48, 60, 72, 96, 108″ W
Lengths: 48, 60, 72, 96, 108″ L

Fire Tests

ASTM E84-17a Class A
CAN/ULC-S102

Lead Time

3-6 weeks

Origin

Manufactured and assembled in the USA

Sustainability

We help designers, architects, and owners meet their clean building goals by testing all of our products against internationally recognized environmental and human safety standards to protect our employees, our customers, and future generations. Read more about our sustainability work here.

Design Symbols

Open Design Symbols
