Ceiling / Frames / Recess / Waffle

Recess, Waffle

8 designs + 2 collections

Engineered to use less material, Waffle ceiling frames are light and easy to install anywhere. Plus, with a range of sizes and the offering of both woodgrain and solid colors, Waffle offers exceptional creative freedom as you add texture, sound management, and sophistication to any space.

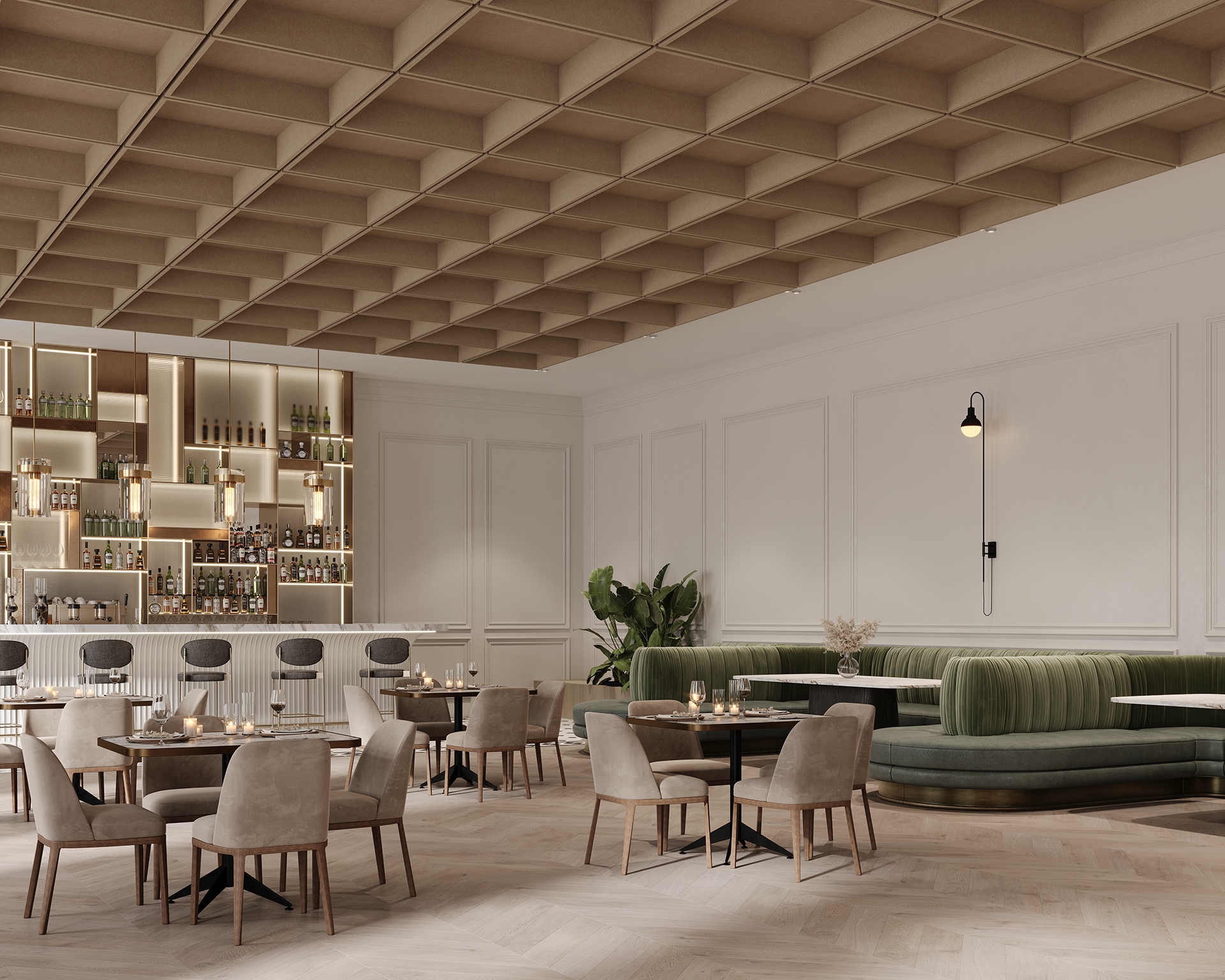

A modern, elegant restaurant interior with a bar on the left featuring bottles on shelves and bar stools. Several dining tables with beige chairs are arranged, and a green cushioned booth lines the right wall. The ceiling has a geometric acoustic felt design.

Recess, Waffle Ceiling Frames | Umber | Premier Collection

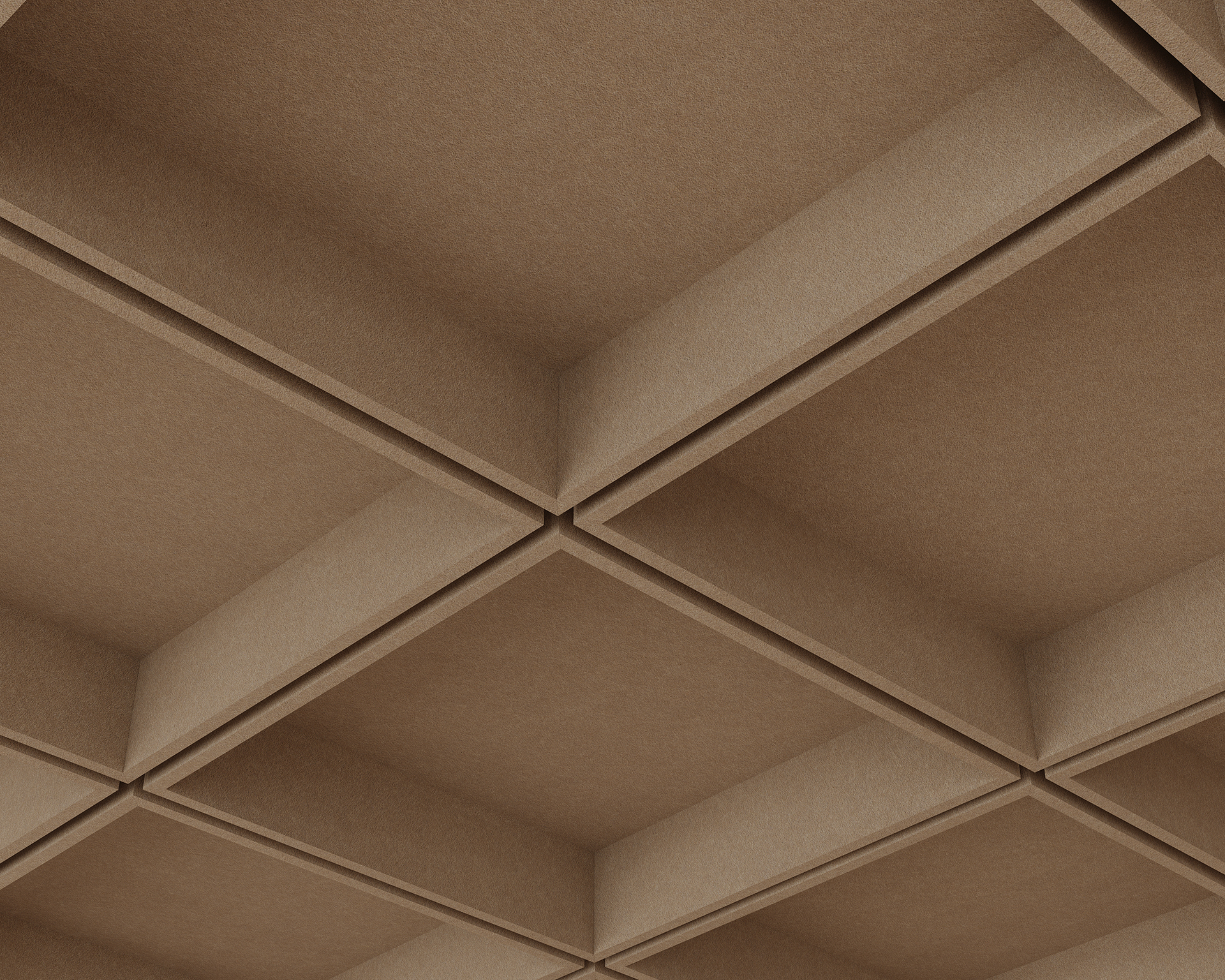

Close-up of a beige grid pattern resembling a waffle shape, with square recessed sections creating a 3D effect in acoustic felt. The material appears textured, creating depth and shadow.

Recess, Waffle Ceiling Frames | Umber | Premier Collection

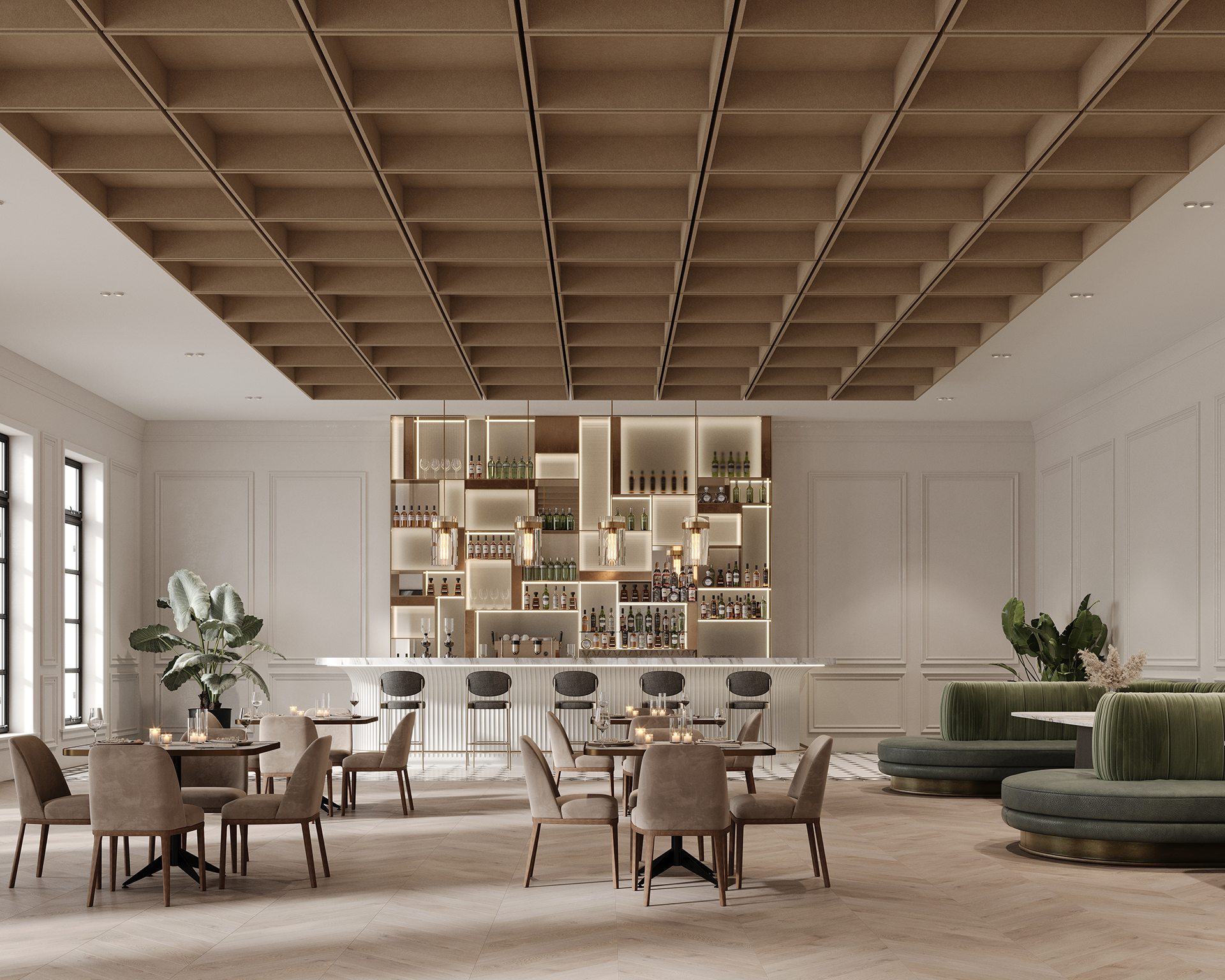

A spacious, modern restaurant interior with a white and beige color scheme. There are wooden tables and chairs, a sleek bar with high stools, geometric acoustic felt ceiling panels, large windows, and decorative plants, creating an elegant ambiance.

Recess, Waffle Ceiling Frames | Umber | Premier Collection

RecessWaffle

Product Samples

Build a product sample.

Build your product, download a PDF, and order a custom sample.

1. Select design

2. Select thickness

3. Select size

4. Select face color

White
WH12

5. Select back color

White
WH12

Recess

Waffle

Date	5/6/2026
Product	Recess
Design	Waffle
Face Color	White WH12
Back Color	White WH12
Thickness	12mm
Sample Size	4"H x 1"T - 12"W x 12"L

DISCLAIMER

Drawing is a reference for color application only. We recommend ordering actual color samples to make final design decisions.

Note: Sample is a scaled-down version of the product.

Product samples are limited to a maximum of 5. Ships in 1-2 days.

Need color samples, too? Order them .

Resources

Specification Sheet

Trim Accessories Specification Sheet

Colorways

Installation Guide

Care Guide

Warranty

Material Safety

LEED Contributions

Specifications

Specs

Surface

Ceiling

Material

Felt (100% polyester)

Recycled Content

60% minimum

NRC Rating

Testing in progress

Weight

0.49 lb./ft²

Dimensions

Heights: 4, 6, 8″ H
Width and length: 24″ W x 24″ L, 48″ W x 48″ L
Slat thickness: 1″ T

Fire Tests

ASTM E84-17a Class A

Lead Time

3-6 weeks

Origin

Manufactured and assembled in the USA

Sustainability

We help designers, architects, and owners meet their clean building goals by testing all of our products against internationally recognized environmental and human safety standards to protect our employees, our customers, and future generations. Read more about our sustainability work here.

Design Symbols

Open Design Symbols
