Ceiling / Frames / Recess / Chamfer

Recess, Chamfer

8 designs + 2 collections

Elevate any environment with Chamfer Ceiling Frames, which enhance texture, provide superior sound management, and add striking visual appeal. These frames boast a sleek angled edge and a lightweight design, making them easy to install in any space. With a variety of sizes and an extensive selection of WoodGrain prints, they offer exceptional design versatility.

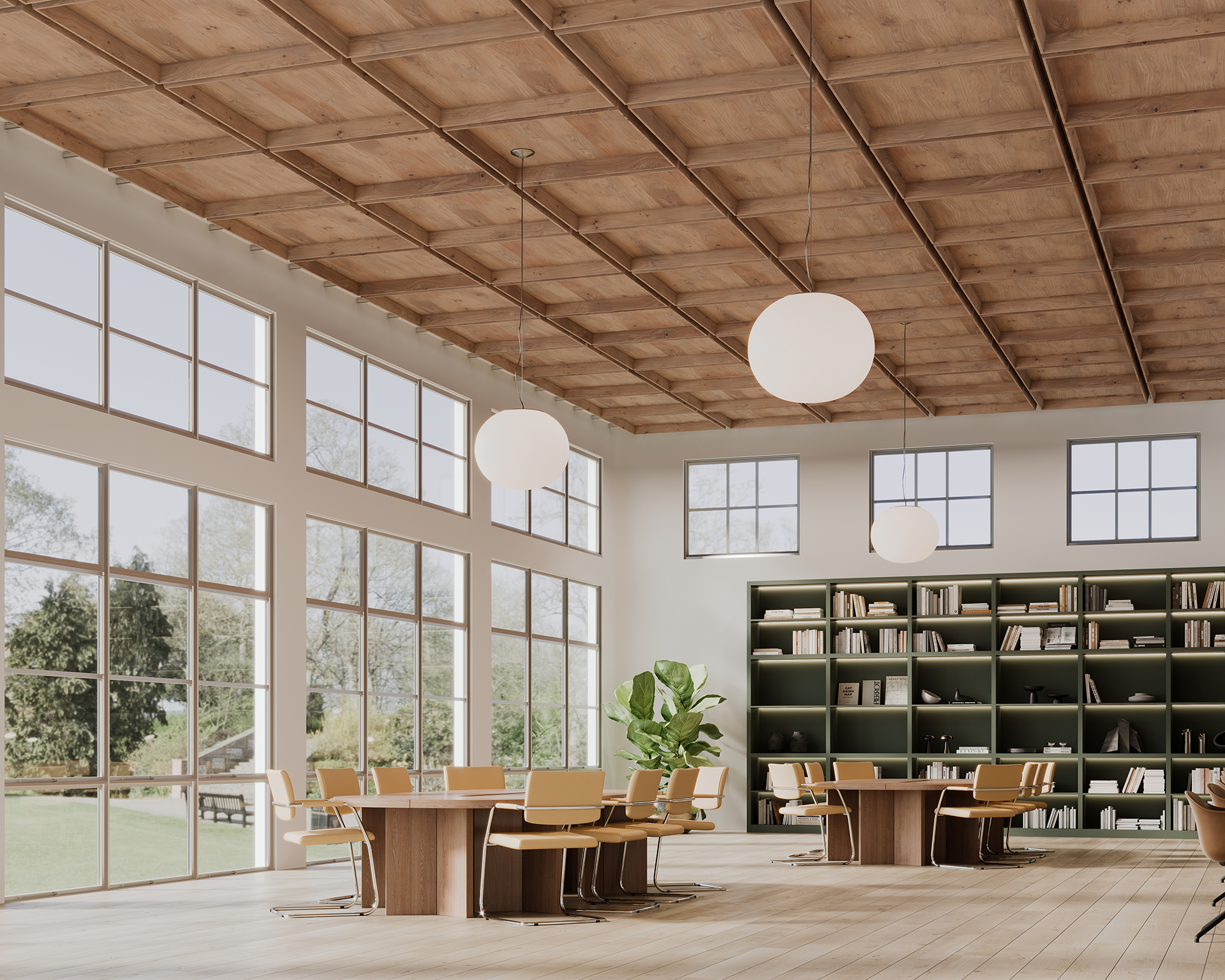

Spacious library with large windows, woodgrain acoustic felt ceiling and floors, green bookshelf filled with books, several wooden tables with chairs, and two round pendant lights. A large plant is placed near a window overlooking greenery outside.

Recess, Chamfer Ceiling Frames | Fumed Oak | WoodGrain Collection

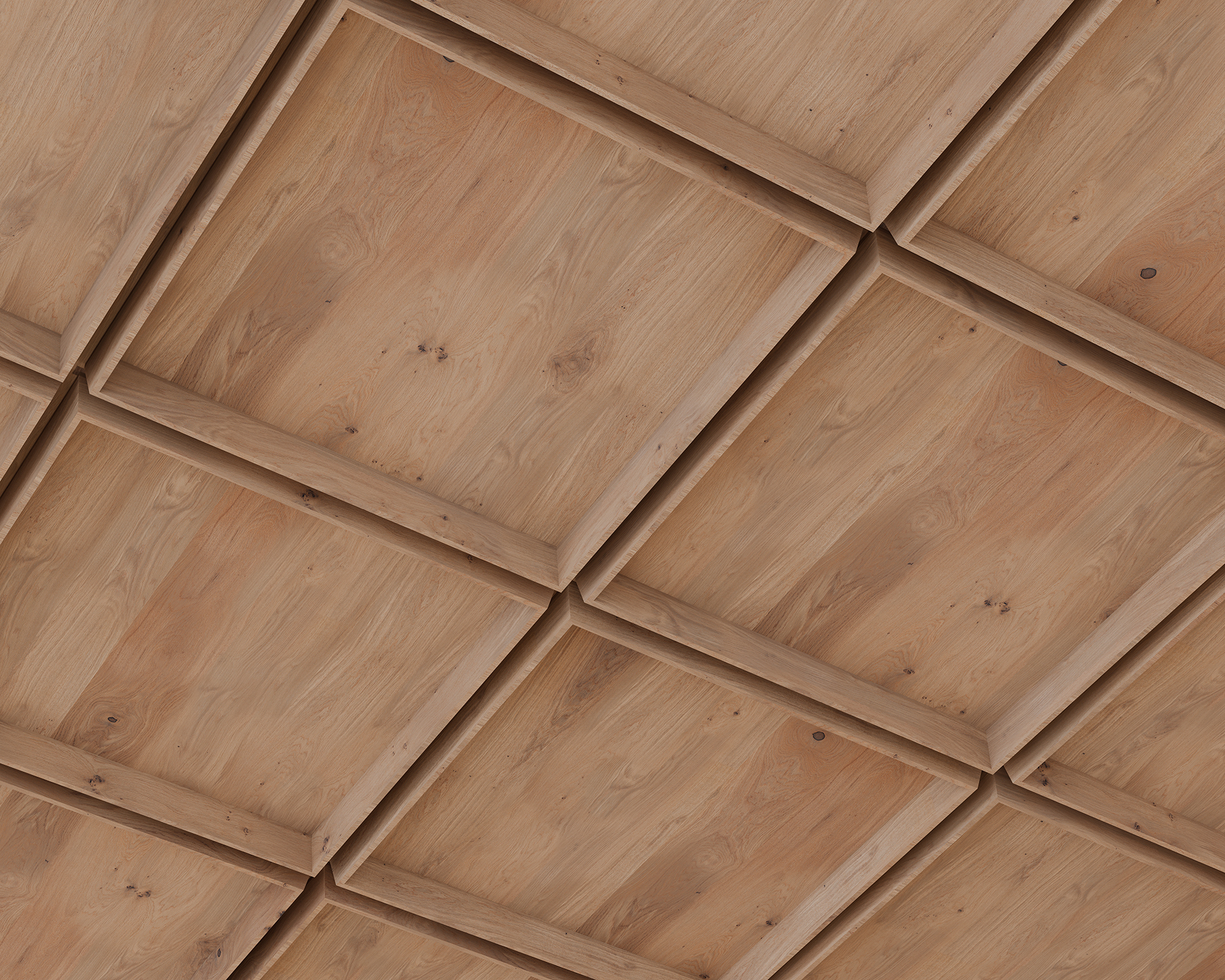

Acoustic felt ceiling with a grid pattern of square panels and recessed beams, featuring a natural wood grain texture and mild color variations. The perspective is angled, providing a dynamic view of the geometric design.

Recess, Chamfer Ceiling Frames | Fumed Oak | WoodGrain Collection

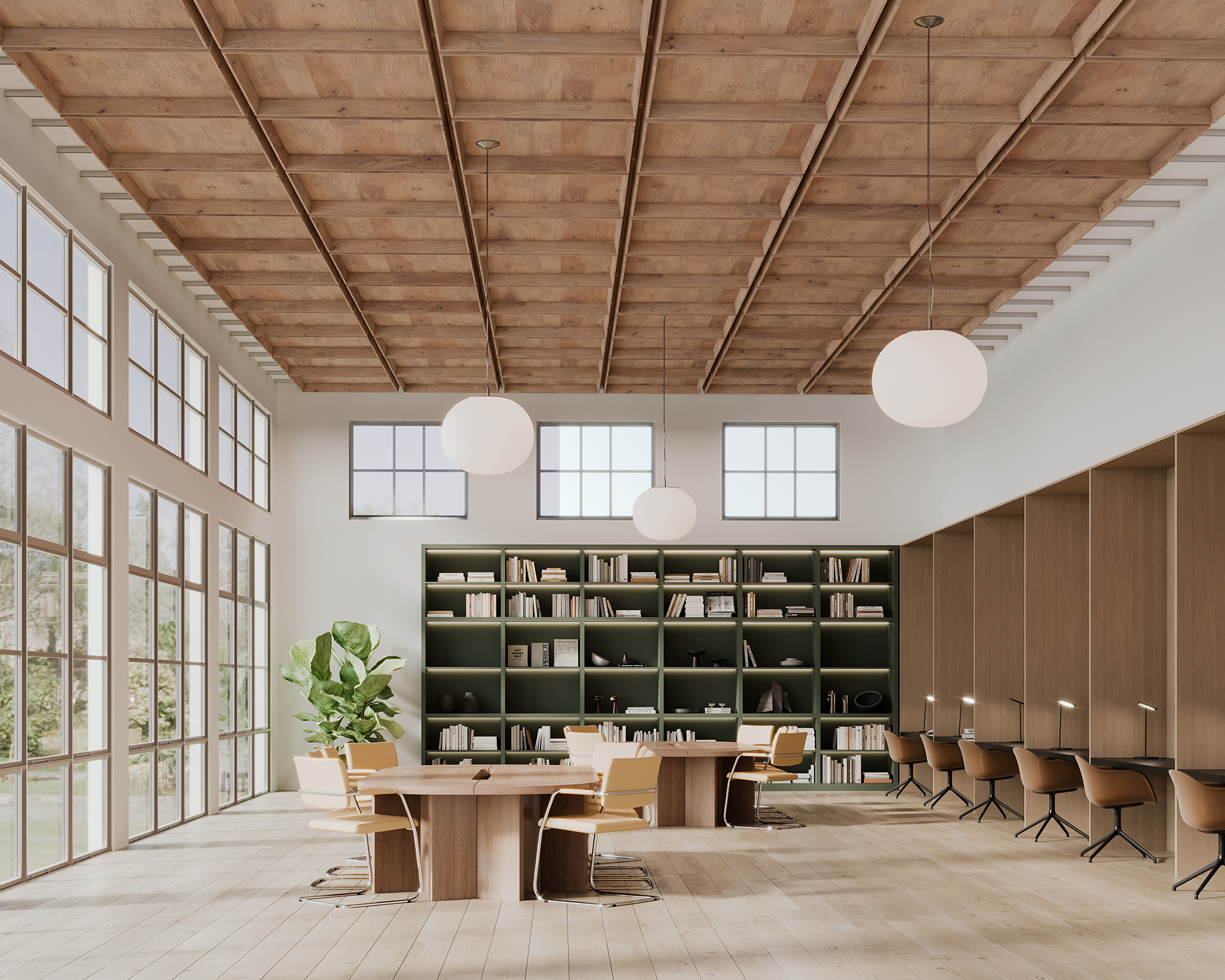

Spacious, modern library with a woodgrain acoustic felt ceiling and floor-to-ceiling windows. Features round pendant lights, a large bookshelf, and wooden tables surrounded by chairs. A potted plant is in the corner. Bright and airy atmosphere.

Recess, Chamfer Ceiling Frames | Fumed Oak | WoodGrain Collection

RecessChamfer

Product Samples

Build a product sample.

Build your product, download a PDF, and order a custom sample.

1. Select design

2. Select thickness

3. Select size

4. Select face color

Picket Fence
WQ01

5. Select back color

White
WH12

Recess

Chamfer

Date	5/6/2026
Product	Recess
Design	Chamfer
Face Color	Picket Fence WQ01
Back Color	White WH12
Thickness	12mm
Sample Size	4"H x 1"T - 12"W x 12"L

DISCLAIMER

Drawing is a reference for color application only. We recommend ordering actual color samples to make final design decisions.

Note: Sample is a scaled-down version of the product.

Product samples are limited to a maximum of 5. Ships in 1-2 days.

Need color samples, too? Order them .

Resources

Specification Sheet

Trim Accessories Specification Sheet

Colorways

Field Modification Guide

Care Guide

Warranty

Material Safety

LEED Contributions

Specifications

Specs

Surface

Ceiling

Material

Felt (100% polyester)

Recycled Content

60% minimum

NRC Rating

Testing in progress

Weight

0.49 lb./ft²

Dimensions

Heights: 4, 6, 8″ H
Width and length: 24″ W x 24″ L, 48″ W x 48″ L
Slat thickness: 1″ T

Fire Tests

ASTM E84-17a Class A

Lead Time

3-6 weeks

Origin

Manufactured and assembled in the USA

Sustainability

We help designers, architects, and owners meet their clean building goals by testing all of our products against internationally recognized environmental and human safety standards to protect our employees, our customers, and future generations. Read more about our sustainability work here.
