Ceiling / Frames / Recess / Chamfer

Recess, Chamfer

8 designs + 2 collections

Chamfer Ceiling Frames boast a sleek angled edge and a lightweight design, making them easy to install in any space. With a variety of sizes and a wide selection of Premier Collection colors, they offer exceptional design versatility. Elevate any environment with enhanced texture, superior sound management, and striking visual appeal.

A spacious, well-lit library with large windows, wooden tables, and chairs. It features a bookshelf filled with books and a large plant. Round pendant lights hang from the acoustic felt ceiling, and greenery is visible through the windows.

Recess, Chamfer Ceiling Frames | Pearl | Premier Collection

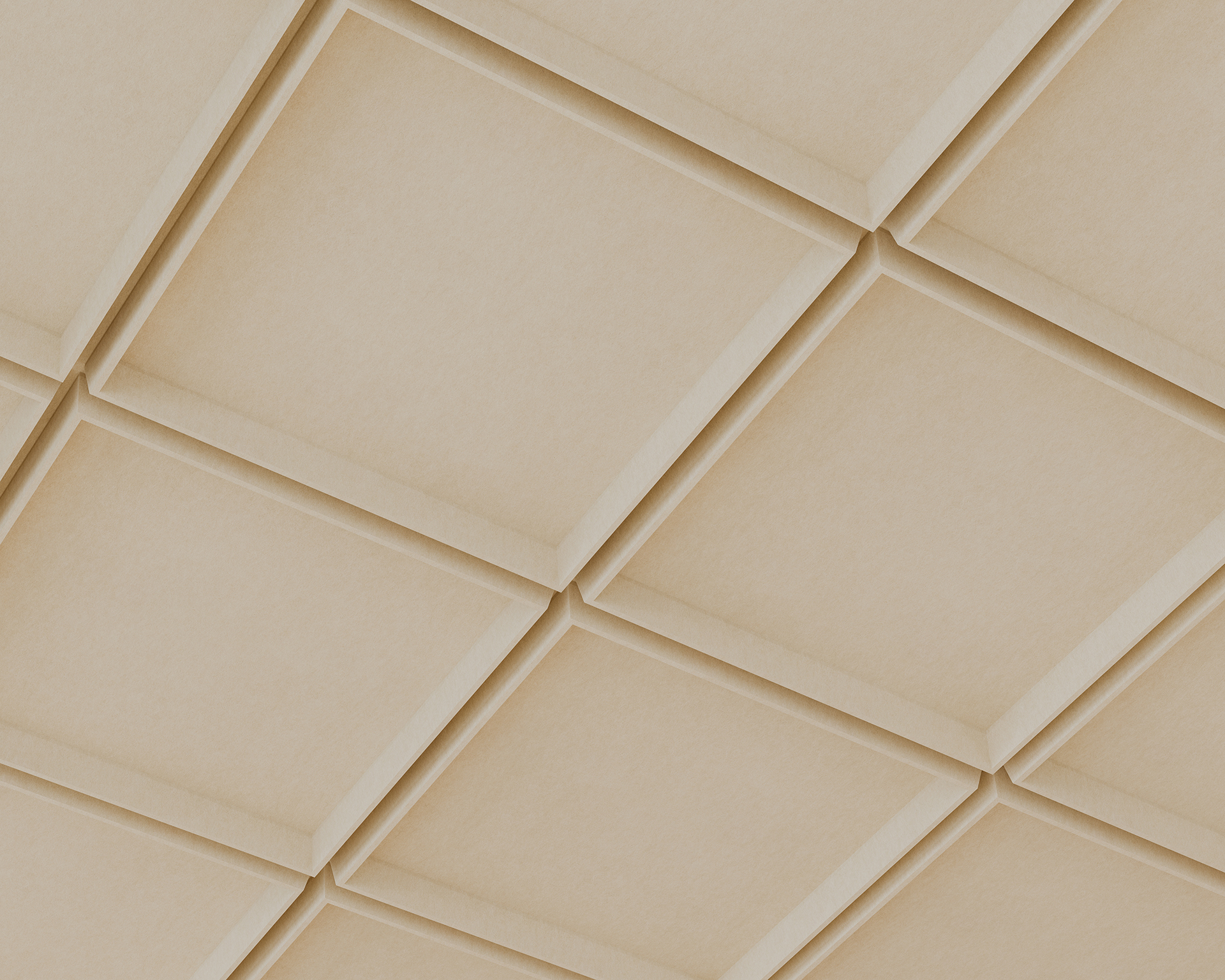

Geometric pattern of beige, square-shaped acoustic felt tiles arranged diagonally. The tiles create a 3D effect with shadowed edges, giving an illusion of depth and texture. The tone is warm and neutral, enhancing the structured, orderly design.

Recess, Chamfer Ceiling Frames | Pearl | Premier Collection

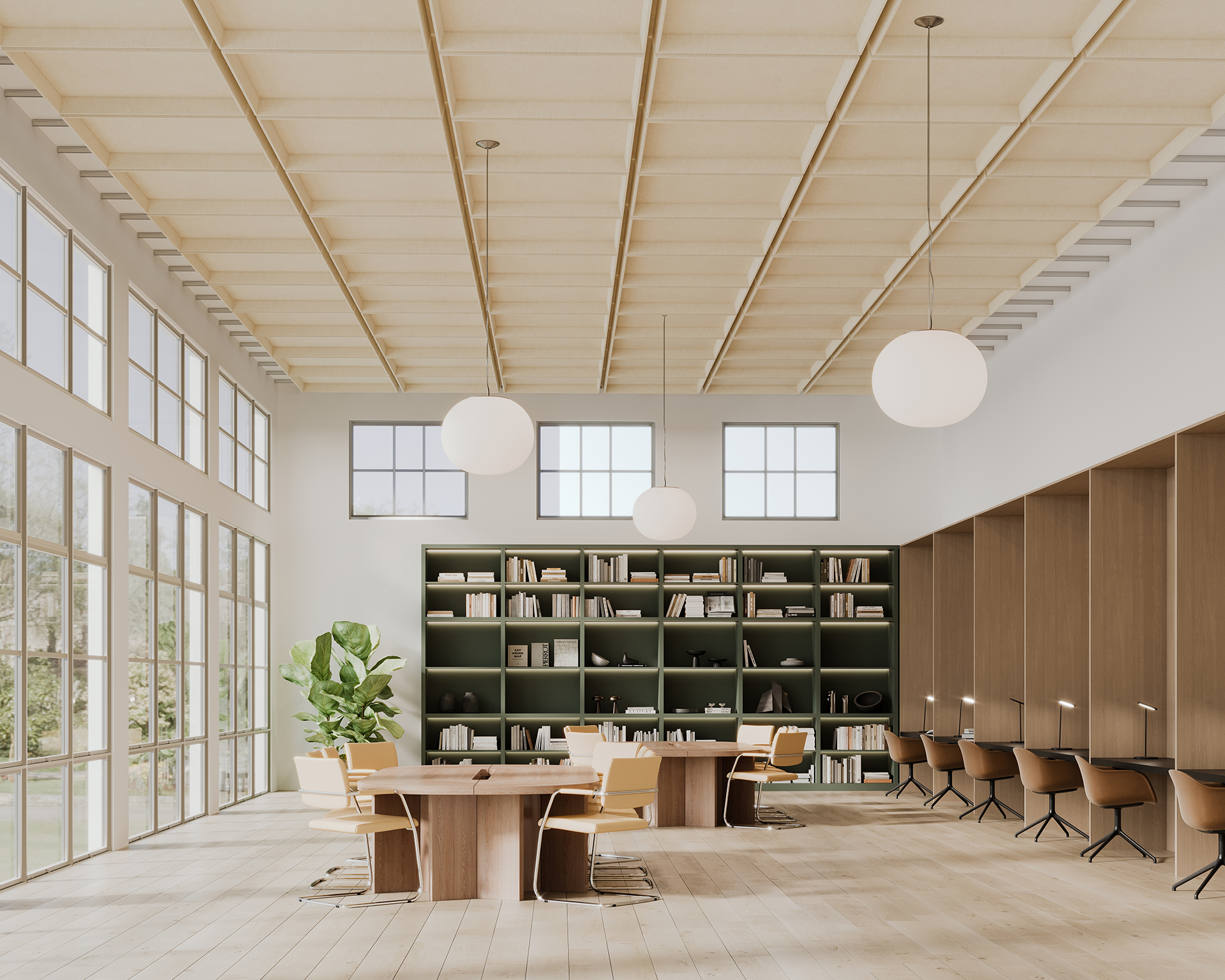

A modern library with high acoustic felt ceilings and large windows. Wooden tables and chairs are arranged neatly in the room. A shelf filled with books lines the back wall, and round pendant lights hang from the ceiling. A potted plant adds greenery.

Recess, Chamfer Ceiling Frames | Pearl | Premier Collection

RecessChamfer

Product Samples

Build a product sample.

Build your product, download a PDF, and order a custom sample.

1. Select design

2. Select thickness

3. Select size

4. Select face color

White
WH12

5. Select back color

White
WH12

Recess

Chamfer

Date	5/6/2026
Product	Recess
Design	Chamfer
Face Color	White WH12
Back Color	White WH12
Thickness	12mm
Sample Size	4"H x 1"T - 12"W x 12"L

DISCLAIMER

Drawing is a reference for color application only. We recommend ordering actual color samples to make final design decisions.

Note: Sample is a section of the full product.

Product samples are limited to a maximum of 5. Ships in 1-2 days.

Need color samples, too? Order them .

Resources

Specification Sheet

Trim Accessories Specification Sheet

Colorways

Field Modification Guide

Care Guide

Warranty

Material Safety

LEED Contributions

Specifications

Specs

Surface

Ceiling

Material

Felt (100% polyester)

Recycled Content

60% minimum

NRC Rating

Testing in progress

Weight

0.49 lb./ft²

Dimensions

Heights: 4, 6, 8″ H
Width and length: 24″ W x 24″ L, 48″ W x 48″ L
Slat thickness: 1″ T

Fire Tests

ASTM E84-17a Class A

Lead Time

3-6 weeks

Origin

Manufactured and assembled in the USA

Sustainability

We help designers, architects, and owners meet their clean building goals by testing all of our products against internationally recognized environmental and human safety standards to protect our employees, our customers, and future generations. Read more about our sustainability work here.

Design Symbols

Open Design Symbols
